Dielectric Protects RF Investments for Broadcasters with OptiLoad

To be introduced at NAB Show 2024, OptiLoad includes programmable logic controls to sense RF power and thermal temperatures to prevent transmission system failures.

Dielectric has developed a new green, cost-reducing load solution featuring a closed-loop cooling system, protecting RF System components from failures that can cause extensive harm to the transmission system and shelter. To be introduced at NAB Show 2024, OptiLoad breaks new ground by using programmable logic controls (PLCs) to sense rising RF power and temperature levels, awakening the system to take action. OptiLoad’s PLCs also monitor the health of the demand-driven circulator pumps and fans that are activated to address RF flow and temperature rises.

The OptiLoad design includes a water column load that Dielectric has offered for two decades, with more than 5000 units shipped worldwide. Using the water column load as a building block, Dielectric has added a built-in heat exchanger responsive to PLC activations. The water column load can run without coolant flow or fans activated with powers up to 5kW. This ensures plenty of headroom when RF is detected and the coolant and fans start to operate prior to the load seeing 5kW.

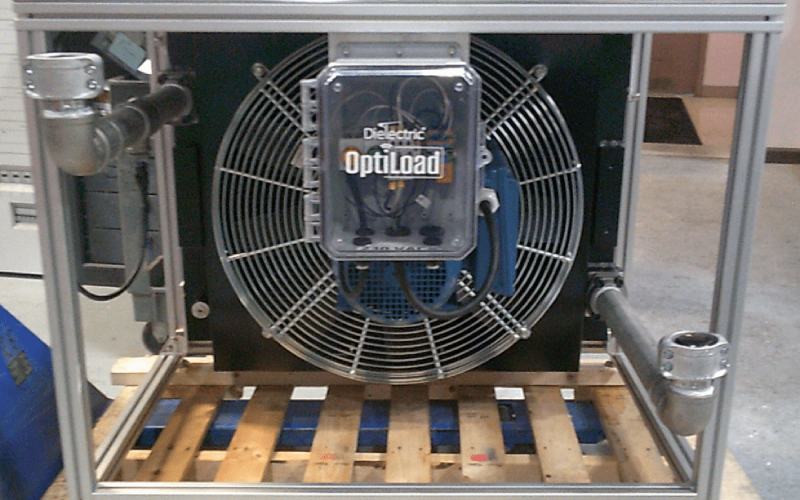

The entire SNMP-enabled system is centralized to a compact cabinet with wheels that can be located quietly in the corner, and easily be moved to a new space in the facility as transmission systems are redesigned. The SNMP functionality will allow the transmitter to do a daily handshake. If that handshake does not occur the station will be notified to prevent failures.

‘OptiLoad’s modern design is a true convergence of passive RF equipment, electronics and sensing that was brought to life by our engineering team’, said Keith Pelletier, President of Dielectric.

“It speaks volumes to the future of the RF business. For our customers, it addresses the all-too-frequent failures in the RF chains and a peace of mind that they have a solution that they do not need to worry about. The OptiLoad was customer-driven and we listened to their concerns about reliability and required features.”

Pelletier explains the importance of the passive RF load and a closed loop system in the design of the OptiLoad. This will prevent the coolant from getting contaminated and causing failures within the load that would eventually cause failures in the RF plumbing to the combining system.

Once the load fails, other components will as well if not caught soon enough. “Once the coolant  stops working or is no longer flowing through the pipes, failures and damage are imminent. Entire systems must be replaced in some cases, and cleanup services may be required to remove coolant from the floors. It can quickly turn very expensive.”

NAB Show 2024 takes place April 14-17 at the Las Vegas Convention Center. Dielectric exhibits at W3333.
